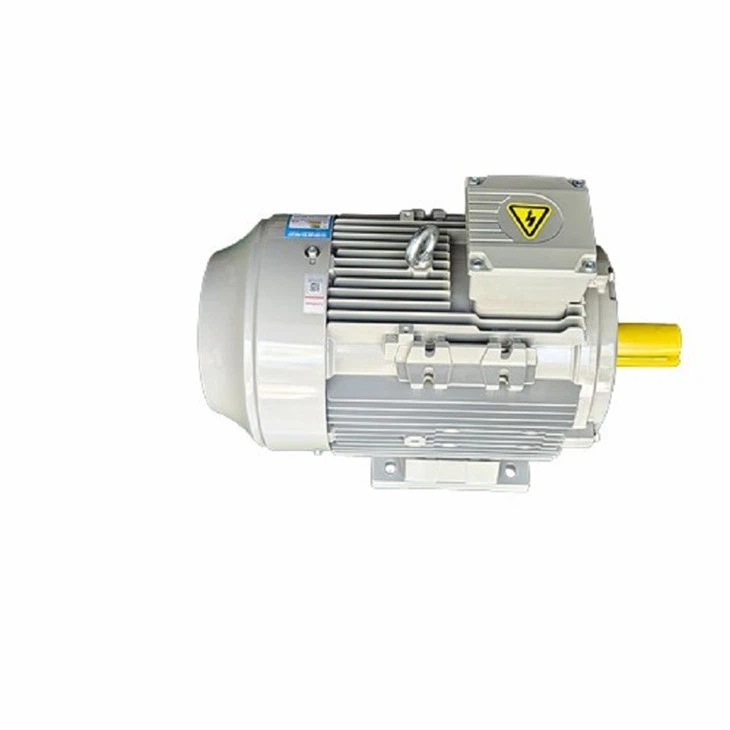

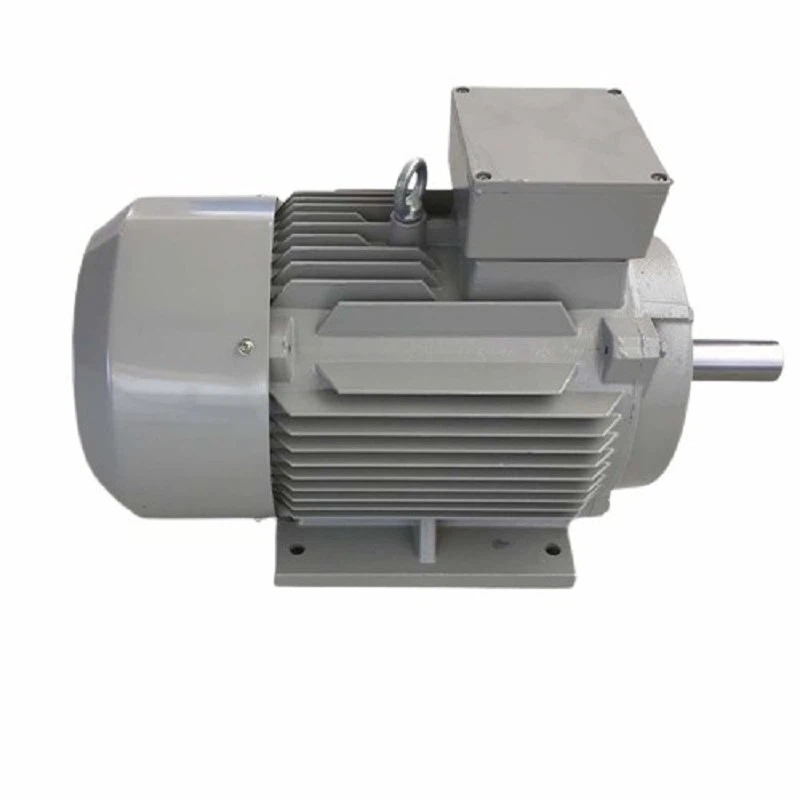

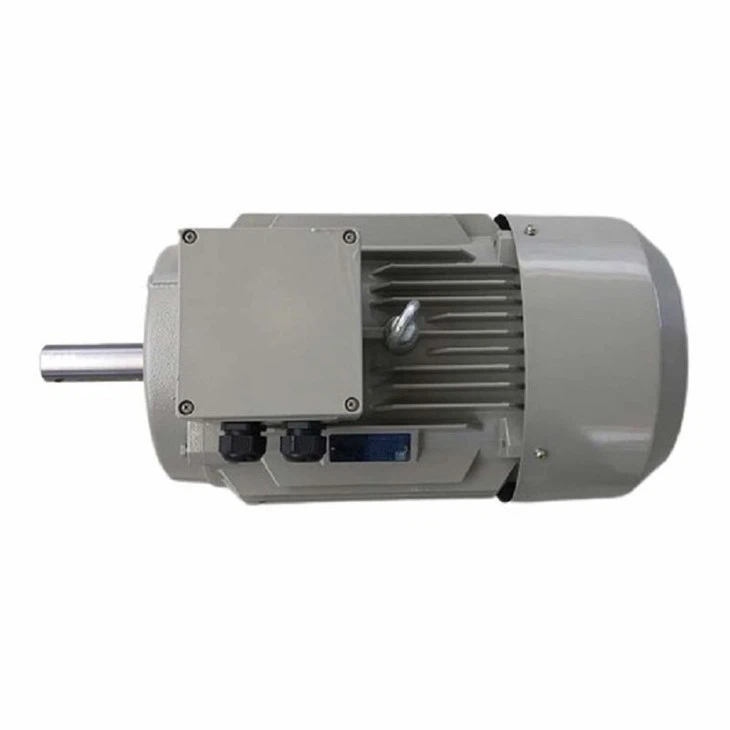

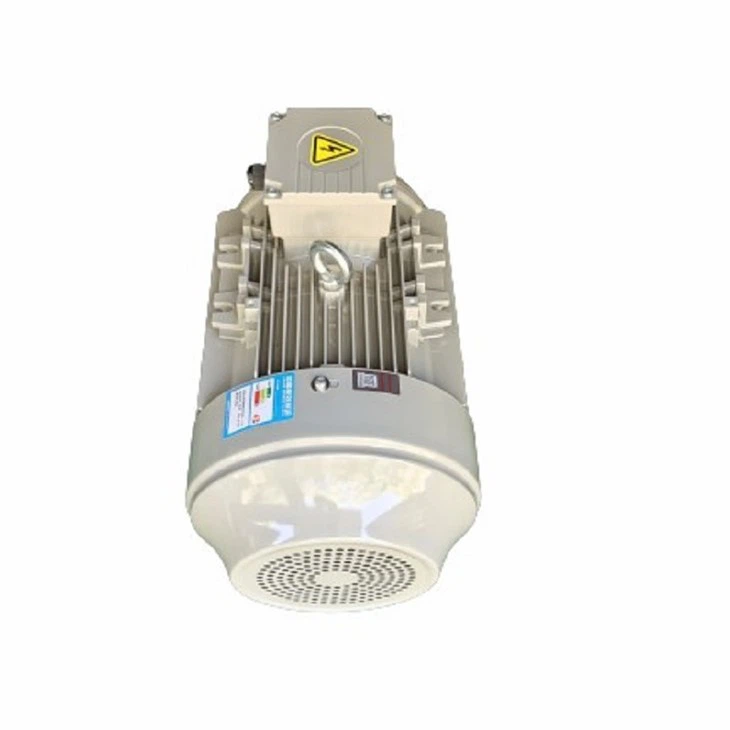

Ie4 Electric Motor
The IE4 electric motor achieves efficiency levels in accordance with the IEC 60034-30:2014 1E4 or lE4 standard. The installation dimensions and power ratings of the IE4 electric motor comply with DIN and IEC standards.
Products Description
The IE4 electric motor is highly energy-efficient and suitable for various industries, including metal cutting, fans, pumps, transportation machinery, mixers, agricultural machinery, livestock equipment, food machinery, compressors, and more.
The motor features a core constructed with cold-rolled silicon steel sheets and F-grade insulation, ensuring a long lifespan.
The motor housing is made of cast iron or aluminum alloy, resulting in low vibration, stable structure and performance, and minimal noise levels.

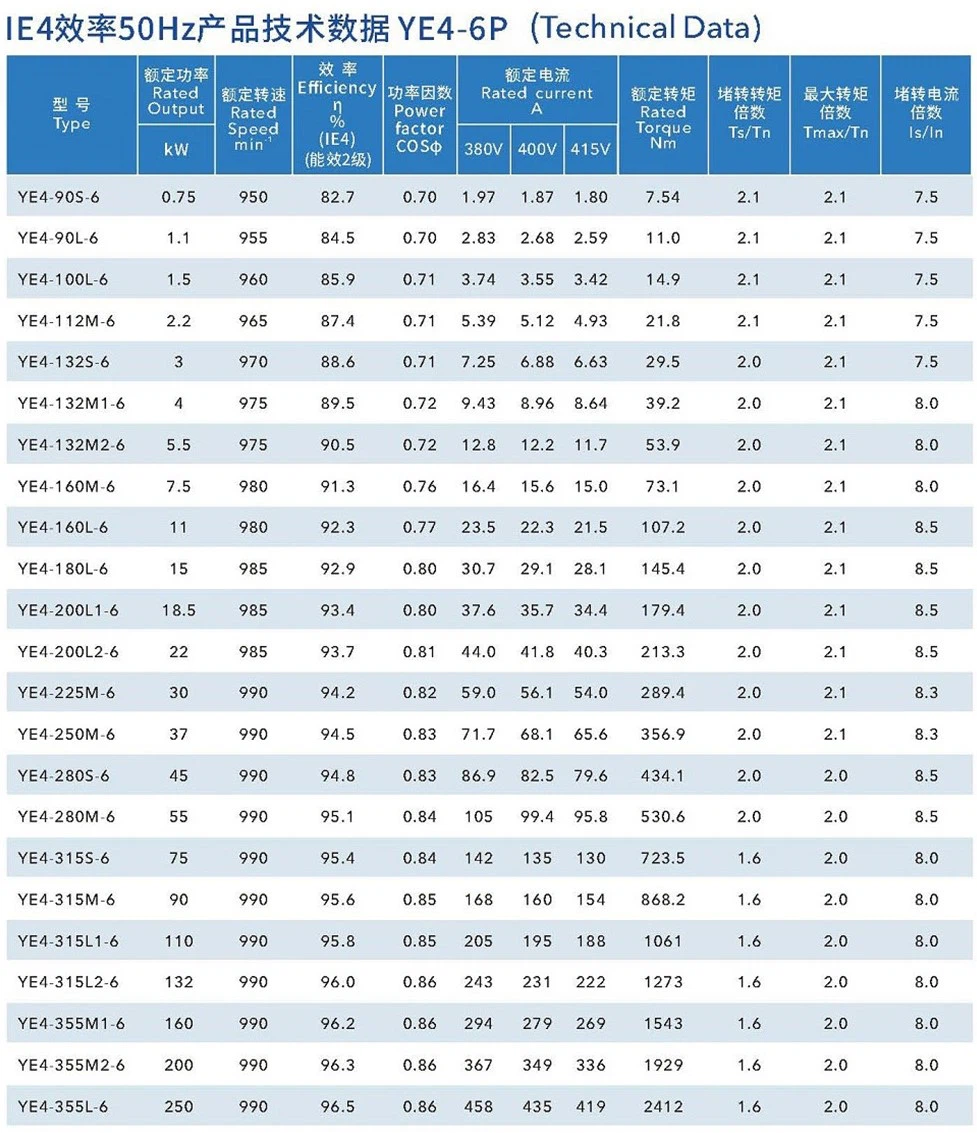

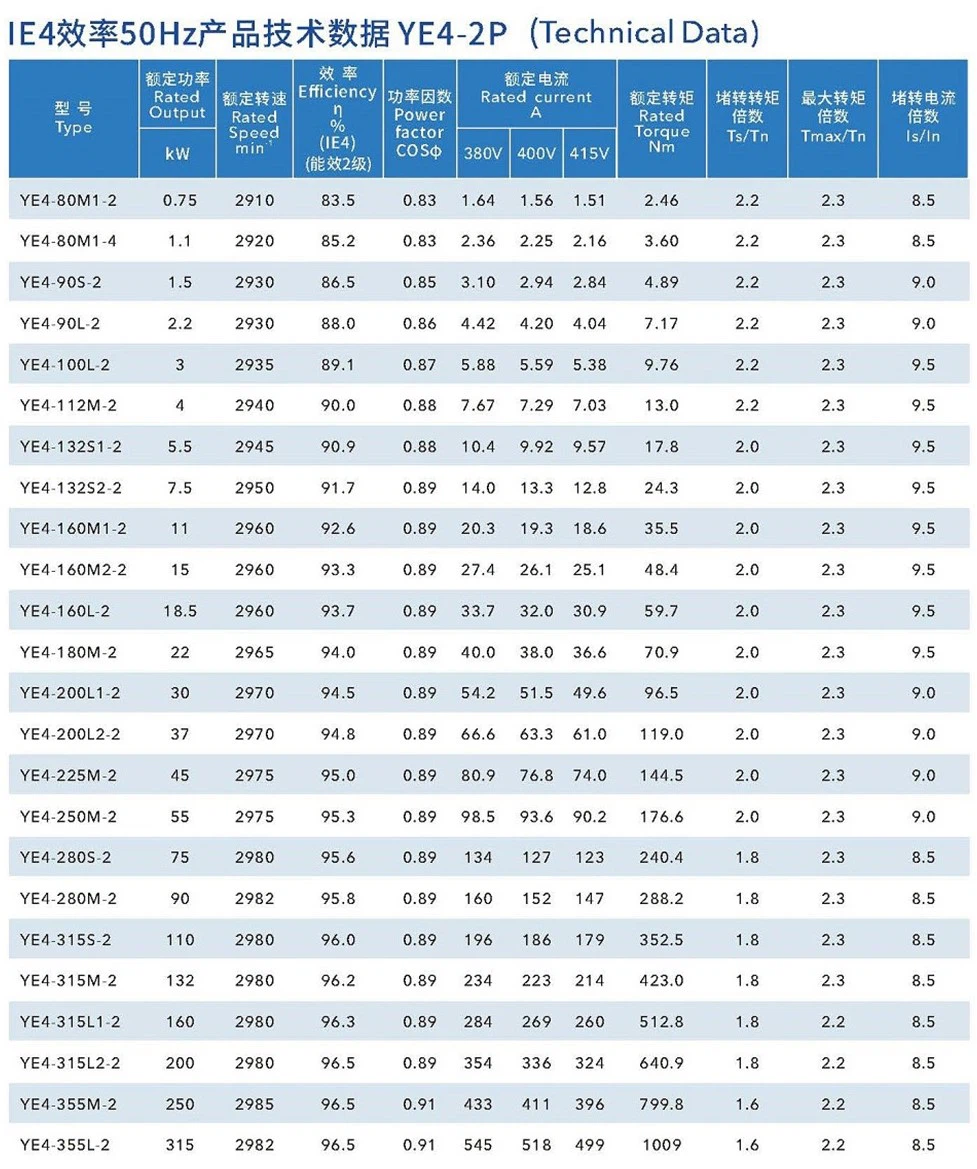

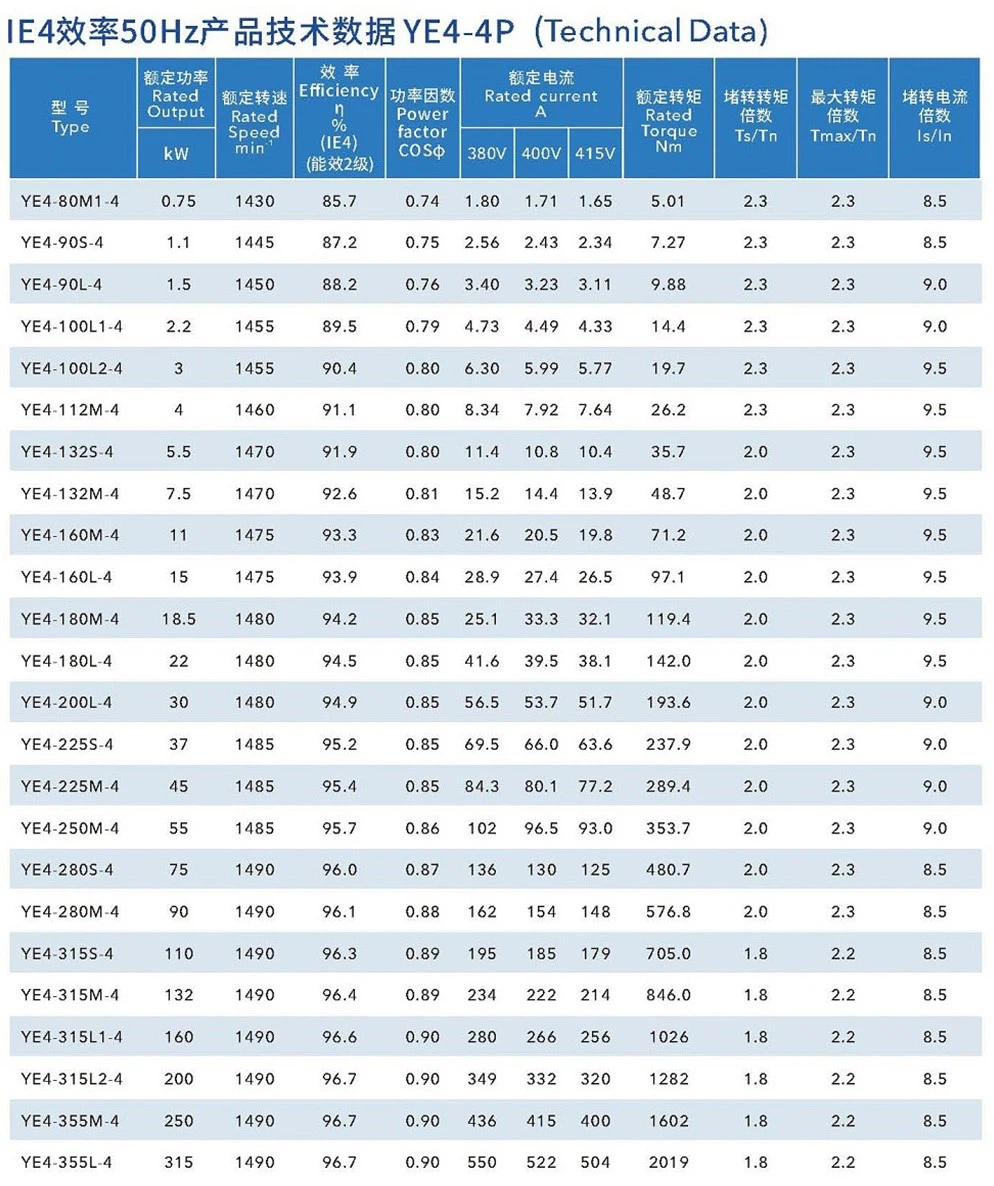

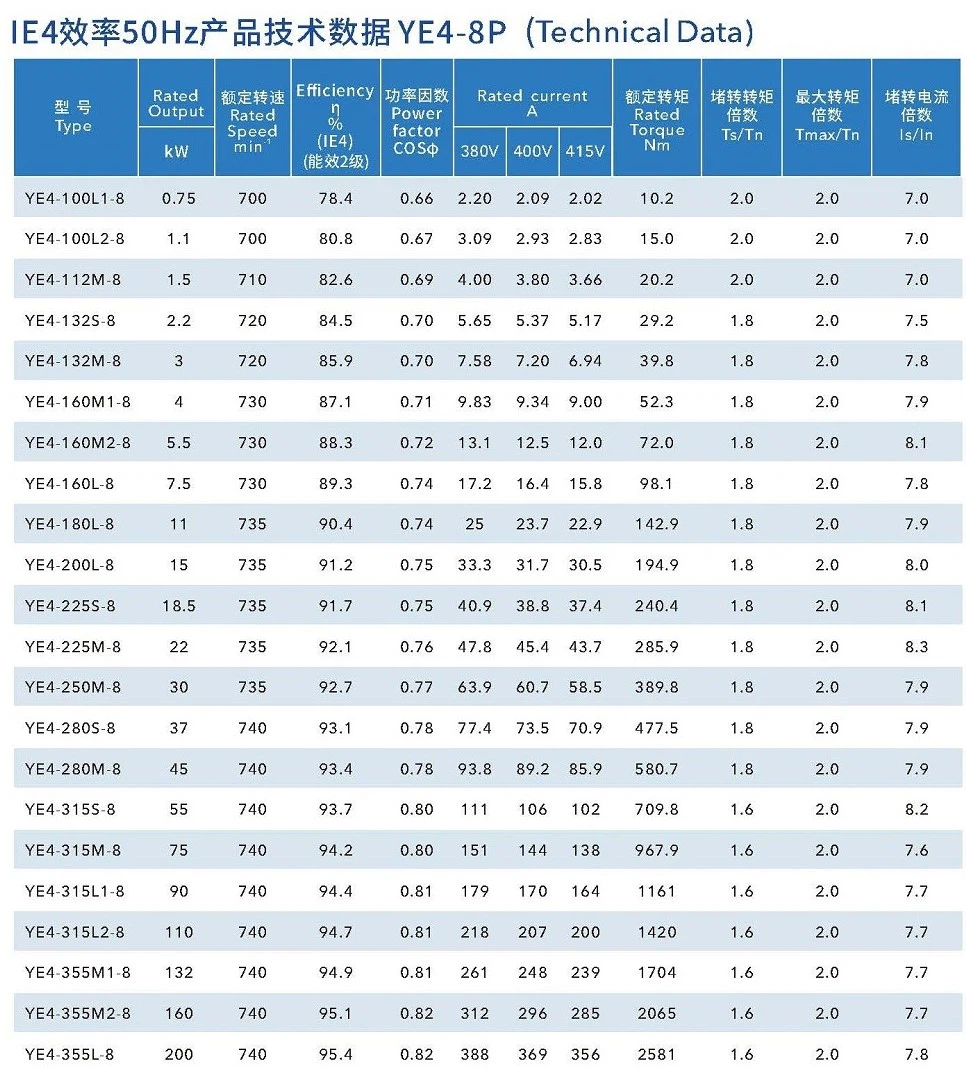

Product Data
The altitude should not exceed 1000m;(The altitude above 1000m belongs to plateau motor and can be customized)
The maximum ambient temperature should not exceed 40℃.Minimum ambient temperature does notexceed-5℃
S1 working system;
Voltage fluctuation of power supply does not exceed (±5%)and frequency fuctuation does not exceed (±2%)
Insulation grade F;
Protection level:IP54,IP55;
Cooling mode:IC411;
Installation methods include:lMB3,B5,B35,V1,B14,B34,etc
FAQ
What certificates does your company have?
CE, CCC, UK CA, ROHS, IS0 9001, ISO14001, ISO 45001.
Are you trading company or manufacturer?
We are manufacturers.
