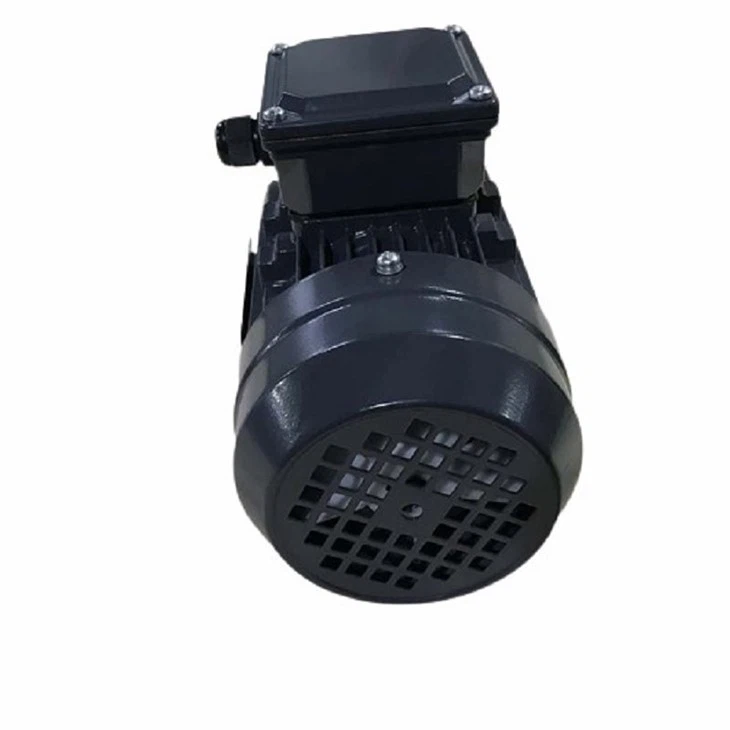

Ie2 Aluminum Motor
The IE2 Aluminum Motor refers to a motor that operates at IE2 efficiency. It is designed with an aluminum housing. The power rating of this motor ranges from 0.18 kW to 15 kW.
Products Description
The IE2 Aluminum Motor has power ratings and installation dimensions that comply with GB, DIN, and IEC standards. It operates on three-phase AC power, provides IE2 efficiency, and is suitable for general applications in the machinery industry without specific requirements. It finds utility in metal cutting machine tools, agricultural machinery, food machinery, compressors, fans, pumps, transportation machinery, mixers, gearboxes, and conveyor belts.
The IE2 Aluminum Motor efficiency adheres to the IEC 60034-30:2014 IE2 efficiency and GB 18613-2012 level 3 energy efficiency standards.
The core of the Motor is made of cold-rolled silicon steel sheets, exhibiting strong impact resistance, a Class F insulation grade, high heat resistance, and a long insulation lifespan.
The motor's housing is made of aluminum alloy material, providing a good appearance, lightweight detachable shoes, low vibration, low noise, stable performance, and ensuring safety and reliability.
The center height range for this motor is 63 to 160.

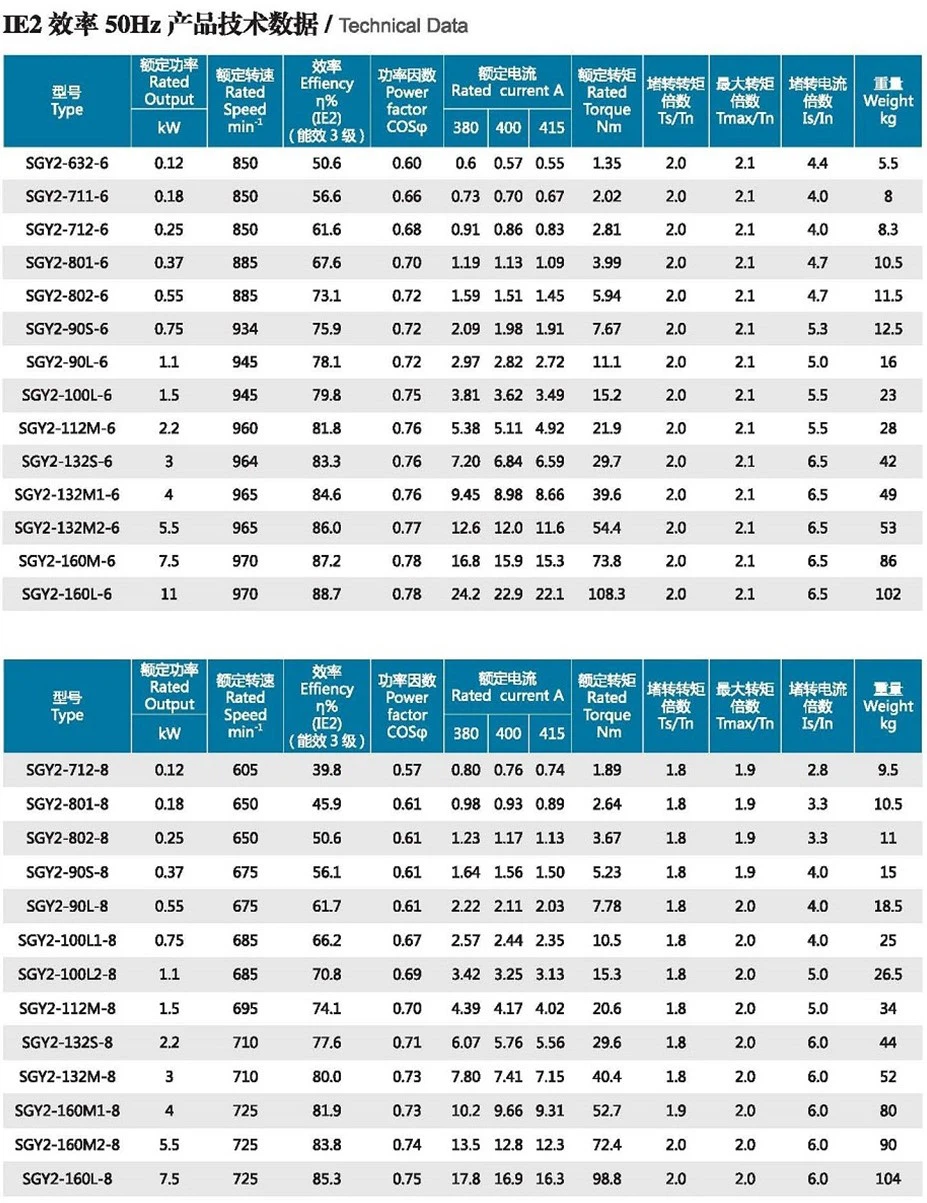

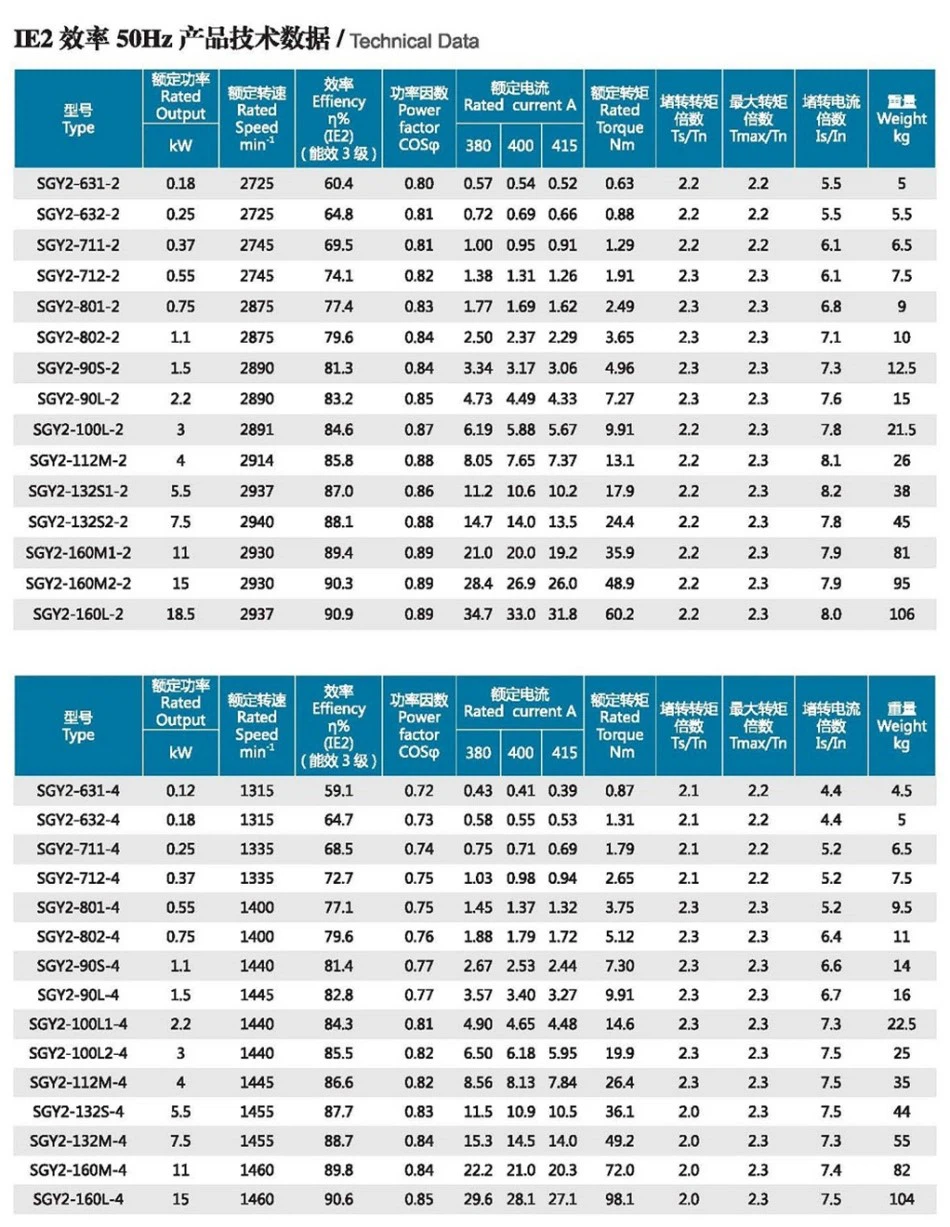

Product Data
The altitude should not exceed 1000m; (The altitude above 1000m belongsto plateau mator and can be customlzed)
The maximum ambient temperature should not exceed 40℃.Minlmum amblent temperature does not exceed -15℃.
S1 working system;
Voltage fluctuation of power supply does not exceed (±5%) and frequency fuctuation does not exceed (±2%).
nsulation grade F;
IProtection level: IP54,P55
Coollng mode:IC411;
Installation methods include: IMB3,B5B35,V1B14,B34,etc
FAQ
How many different types of products do you have?
18 categories.
How long will it take to reply to customer inquiries?
Within one day without special circumstances.
