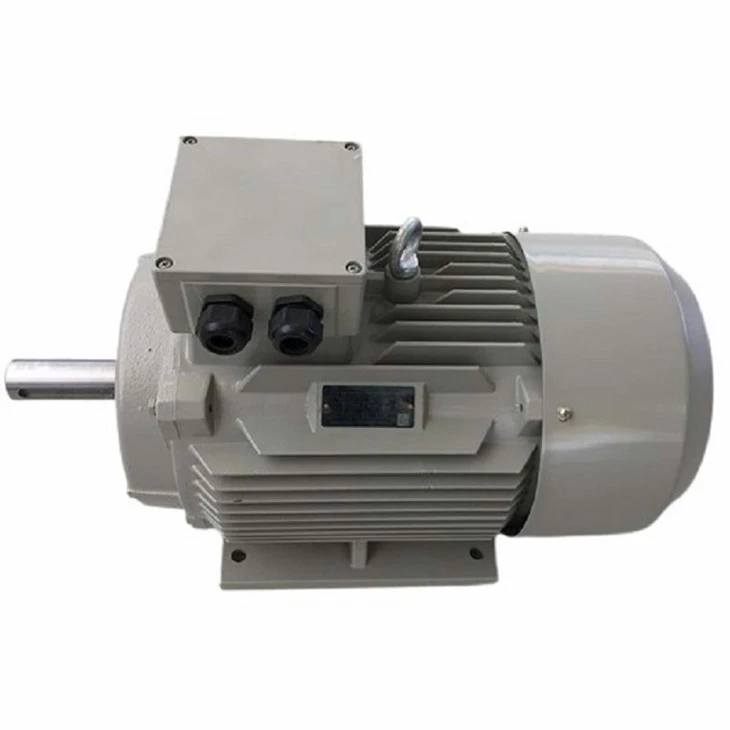

Cast Iron Three Phase Ie3

The Cast Iron Three Phase IE3 motor is suitable for general applications and the machinery industry where specific requirements are not necessary. It finds utility in various areas such as metal cutting machine tools, fans, pumps, transportation machinery, mixers, agricultural machinery, food machinery, compressors, and more. Its installation dimensions and power levels comply with GBDIN and IEC standards.

The efficiency of the Cast Iron Three Phase IE3 motor meets the requirements outlined in the IEC 60034-30:2014 IE3 standard.

The core of the motor is constructed using cold-rolled silicon steel sheets, featuring F-grade insulation. It exhibits high resistance to heat, strong impact resistance, and a prolonged insulation lifespan.

The housing of the motor is made of cast iron, providing a stable structure with low vibration, minimal noise, and ensuring reliable and safe performance.

The altitude should not exceed 1000m;(The altitude above 1000m belongs to plateau motor and can be customized)
The maximum ambient temperature should not exceed 40℃.Minimum ambient temperature does notexceed-5℃
S1 working system;
Voltage fluctuation of power supply does not exceed (±5%)and frequency fuctuation does not exceed(±2%)
Insulation grade F;
Protection level:IP54,IP55;
Cooling mode:IC411;
Installation methods include:lMB3,B5,B35,V1,B14,B34,etc

What shipping methods can you provide?
General shipping.

What are your terms of delivery?
FOB, CFR, CIF.

What are the main components of an electric motor?
The main components of an electric motor include a rotor (armature), stator, commutator, brushes, and power supply.

Hot Tags: cast iron three phase ie3, China cast iron three phase ie3 manufacturers, suppliers, factory, high efficiency motor, motor for small fans, motor for low-pressure fans, Ie3 Motor, energy saving motor, motor for household generators
