How to reduce the electromagnetic interference of an IE4 Electric Motor?

As a supplier of IE4 Electric Motors, I've had my fair share of conversations with customers about the pesky issue of electromagnetic interference (EMI). It's a problem that can throw a wrench in the smooth operation of these motors and other nearby electronic equipment. In this blog, I'll share some practical tips on how to reduce the electromagnetic interference of an IE4 Electric Motor.

Understanding Electromagnetic Interference in IE4 Electric Motors

Before we dive into the solutions, let's quickly understand what EMI is and why it occurs in IE4 Electric Motors. EMI is basically the disturbance that affects an electrical circuit due to either electromagnetic induction or electromagnetic radiation emitted from an external source. In the case of IE4 Electric Motors, the high - speed switching of power electronics, such as in variable frequency drives (VFDs) that are often used with these motors, can generate a significant amount of electromagnetic noise.

This noise can interfere with other sensitive electronic devices in the vicinity, causing malfunctions, data errors, or even permanent damage. For example, in an industrial setting, EMI from an IE4 Electric Motor can disrupt the operation of control systems, sensors, or communication devices.

Shielding the Motor

One of the most effective ways to reduce EMI is through proper shielding. A shield acts as a barrier that blocks the electromagnetic fields from escaping the motor and interfering with other equipment.

• Motor Enclosure: When it comes to IE4 Electric Motors, choosing a motor with a well - designed enclosure is crucial. A metallic enclosure, like the ones used in many Ie4 Electric Motor models, can provide a good level of shielding. The metal acts as a Faraday cage, which absorbs and redirects the electromagnetic waves. Make sure the enclosure is properly grounded to ensure maximum effectiveness.
• Cable Shielding: The cables connected to the motor also play a significant role in EMI reduction. Use shielded cables for power and control connections. The shield on the cable should be connected to the motor enclosure and the grounding system at both ends. This helps to contain the electromagnetic fields generated by the current flowing through the cables.

Grounding

Proper grounding is another essential aspect of reducing EMI. Grounding provides a low - impedance path for the electromagnetic currents to flow safely to the ground, rather than radiating into the surrounding environment.

• Motor Grounding: Ensure that the IE4 Electric Motor is correctly grounded. This usually involves connecting the motor frame to a dedicated grounding conductor. The grounding conductor should have a low resistance to effectively carry the fault currents and EMI - related currents to the ground.
• System Grounding: In addition to motor grounding, the entire electrical system, including the power supply, control panels, and other connected equipment, should be properly grounded. A common grounding system helps to maintain a stable electrical potential and reduces the chances of EMI caused by ground loops.

Filtering

Filtering is a technique used to remove the unwanted electromagnetic frequencies from the electrical signals. There are several types of filters that can be used with IE4 Electric Motors.

• Input Filters: Input filters are installed at the power input of the motor or the associated VFD. These filters can reduce the high - frequency noise that enters the motor from the power supply. They work by blocking or attenuating the unwanted frequencies while allowing the desired power frequencies to pass through.
• Output Filters: Output filters are placed between the VFD and the motor. They help to smooth out the output voltage and current waveforms, reducing the high - frequency components that can cause EMI. For example, a sine wave filter can be used to convert the pulse - width modulated (PWM) output of a VFD into a more sinusoidal waveform, which is less likely to generate electromagnetic interference.

Layout and Installation

The way the IE4 Electric Motor is installed and the layout of the electrical system can also have a significant impact on EMI.

• Separation of Cables: Keep power cables and control cables separated as much as possible. Power cables carry high - current and high - voltage signals, which can generate strong electromagnetic fields. If control cables are placed too close to power cables, they can pick up the electromagnetic noise. A good rule of thumb is to maintain a minimum distance of at least a few inches between power and control cables.
• Avoiding Loops: Minimize the formation of large loops in the cables. Loops can act as antennas, picking up and radiating electromagnetic fields. When routing cables, try to keep them as straight as possible and avoid creating unnecessary bends or loops.

Using Low - EMI Components

When designing or upgrading an electrical system with an IE4 Electric Motor, consider using low - EMI components.

• VFD Selection: Choose a VFD that is specifically designed to have low EMI emissions. Some VFDs come with built - in features such as advanced switching techniques, EMI filters, and shielding to reduce electromagnetic interference.
• Sensors and Control Devices: Similarly, select sensors and control devices that are less susceptible to EMI. Look for devices with good electromagnetic compatibility (EMC) ratings.

Regular Maintenance

Regular maintenance of the IE4 Electric Motor and the associated electrical system is essential to ensure that the EMI reduction measures remain effective.

• Inspection of Shielding and Grounding: Periodically check the integrity of the motor enclosure, cable shielding, and grounding connections. Look for signs of damage, corrosion, or loose connections. Any issues should be addressed immediately to maintain the proper shielding and grounding performance.
• Filter Maintenance: If filters are used, make sure they are clean and in good working condition. Over time, filters can accumulate dust and debris, which can affect their performance. Clean or replace the filters as recommended by the manufacturer.

Conclusion

Reducing the electromagnetic interference of an IE4 Electric Motor is a multi - faceted approach that involves shielding, grounding, filtering, proper layout and installation, using low - EMI components, and regular maintenance. By implementing these strategies, you can minimize the impact of EMI on the motor itself and other nearby electronic equipment, ensuring a more reliable and efficient operation.

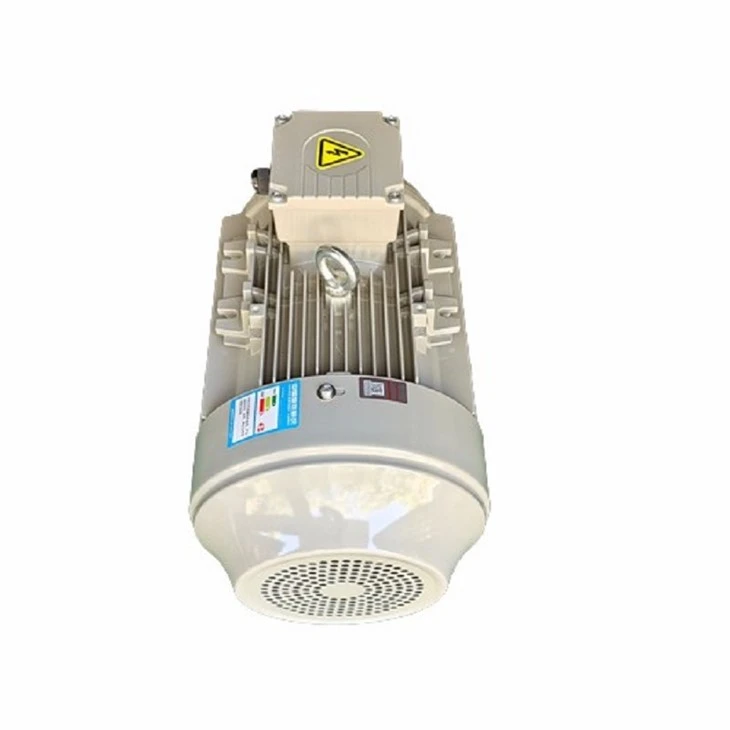

If you're in the market for an Ie4 Electric Motor, Ie4 Induction Motor, or Three Phase Aluminum Motor Ie4, and want to learn more about how to manage EMI, don't hesitate to reach out. We're here to help you make the right choice and ensure that your electrical system runs smoothly. Contact us to start a procurement discussion and find the best solutions for your needs.
