What is the IP rating of an IE2 Aluminum Motor?

Hey there! As a supplier of IE2 Aluminum Motors, I often get asked about the IP rating of these motors. So, I thought I'd take a few minutes to break it down for you and explain what it means for your industrial or commercial applications.

First things first, what exactly is an IP rating? IP stands for Ingress Protection, and it's a standard that's used to define the level of protection that an electrical enclosure provides against the intrusion of solid objects (like dust) and liquids (like water). The rating consists of two digits: the first digit represents the level of protection against solids, and the second digit represents the level of protection against liquids.

Let's start with the first digit, which ranges from 0 to 6. A rating of 0 means that there's no protection against solid objects, while a rating of 6 means that the enclosure is completely dust - tight. Here's a quick breakdown:

• 0: No protection against solid objects.
• 1: Protection against solid objects larger than 50mm (e.g., hands).
• 2: Protection against solid objects larger than 12mm (e.g., fingers).
• 3: Protection against solid objects larger than 2.5mm (e.g., tools).
• 4: Protection against solid objects larger than 1mm (e.g., small screws).
• 5: Dust - protected. Limited ingress of dust is permitted, but it must not enter in sufficient quantity to interfere with the satisfactory operation of the equipment.
• 6: Dust - tight. No dust can enter the enclosure.

Now, let's move on to the second digit, which ranges from 0 to 9. A rating of 0 means that there's no protection against liquids, while a rating of 9 means that the enclosure can withstand high - pressure, high - temperature water jets. Here's a quick overview:

• 0: No protection against liquids.
• 1: Protection against vertically falling drops of water (e.g., condensation).
• 2: Protection against direct sprays of water up to 15 degrees from the vertical.
• 3: Protection against direct sprays of water up to 60 degrees from the vertical.
• 4: Protection against splashing water from any direction.
• 5: Protection against water jets from any direction.
• 6: Protection against powerful water jets (e.g., heavy seas).
• 7: Protection against temporary immersion in water (up to 1m for 30 minutes).
• 8: Protection against continuous immersion in water under conditions specified by the manufacturer.
• 9: Protection against high - pressure, high - temperature water jets.

So, what does this mean for an IE2 Aluminum Motor? Well, the IP rating of an Ie2 Aluminum Motor can vary depending on the specific model and its intended use. For general industrial applications, you'll often see motors with an IP rating of IP54 or IP55.

An IP54 rating means that the motor is dust - protected (first digit 5) and protected against splashing water from any direction (second digit 4). This is a good all - around rating for many indoor and outdoor applications where the motor might be exposed to some dust and light splashes of water.

On the other hand, an IP55 rating offers a bit more protection against water. It still provides dust protection (first digit 5), but the second digit 5 means that the motor is protected against water jets from any direction. This makes it suitable for applications where the motor might be exposed to more intense water sprays, such as in some manufacturing plants or outdoor environments with occasional heavy rain.

If you need a motor for a more demanding environment, like a marine or food processing application, you might look for a motor with a higher IP rating. For example, an IP67 - rated motor is dust - tight (first digit 6) and can withstand temporary immersion in water (second digit 7). This is ideal for applications where the motor will be exposed to a lot of water or where dust contamination could be a major issue.

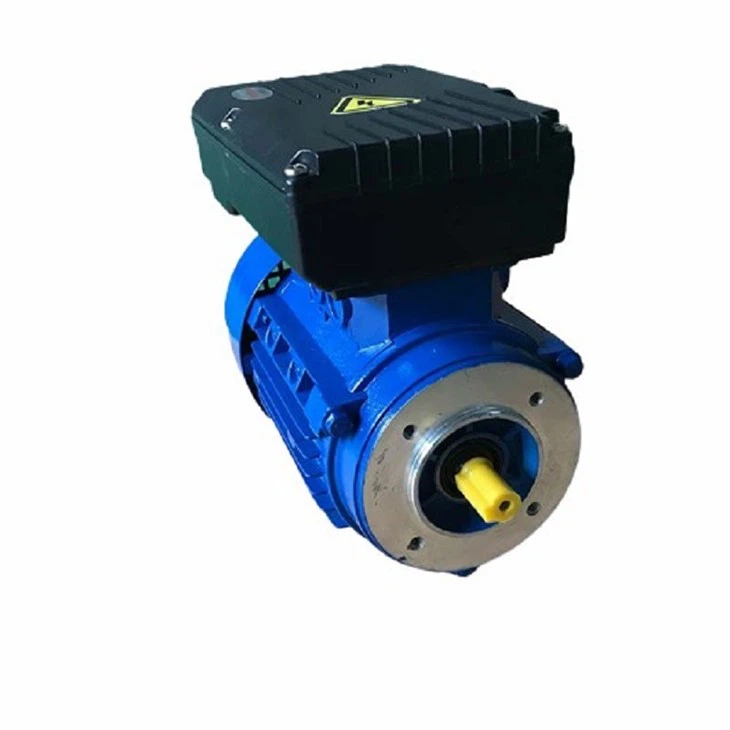

It's also worth noting that the IP rating isn't the only factor to consider when choosing an IE2 Aluminum Motor. Other important factors include the motor's power rating, speed, efficiency, and torque characteristics. For instance, if you're looking for a motor for a small, single - phase application, you might consider a Single Phase Asynchronous Motor. These motors are often used in household appliances, small pumps, and other low - power applications.

On the other hand, if you need a more powerful motor for an industrial application, you might look at a Cast Iron Motor Ie2. Cast iron motors are known for their durability and robustness, and they can handle higher loads and more demanding operating conditions.

In conclusion, understanding the IP rating of an IE2 Aluminum Motor is crucial for choosing the right motor for your application. Whether you need a motor for a clean indoor environment or a harsh outdoor setting, there's an IP - rated motor out there that's right for you. And as a supplier, I'm here to help you find the perfect motor for your needs.

If you're interested in learning more about our IE2 Aluminum Motors or need help choosing the right motor for your application, don't hesitate to reach out. We can have a detailed discussion about your requirements and guide you through the selection process. Let's work together to find the best motor solution for your business!

References

• International Electrotechnical Commission (IEC) standards on Ingress Protection (IP) ratings.
• Industry manuals and guides on electric motor selection and application.
