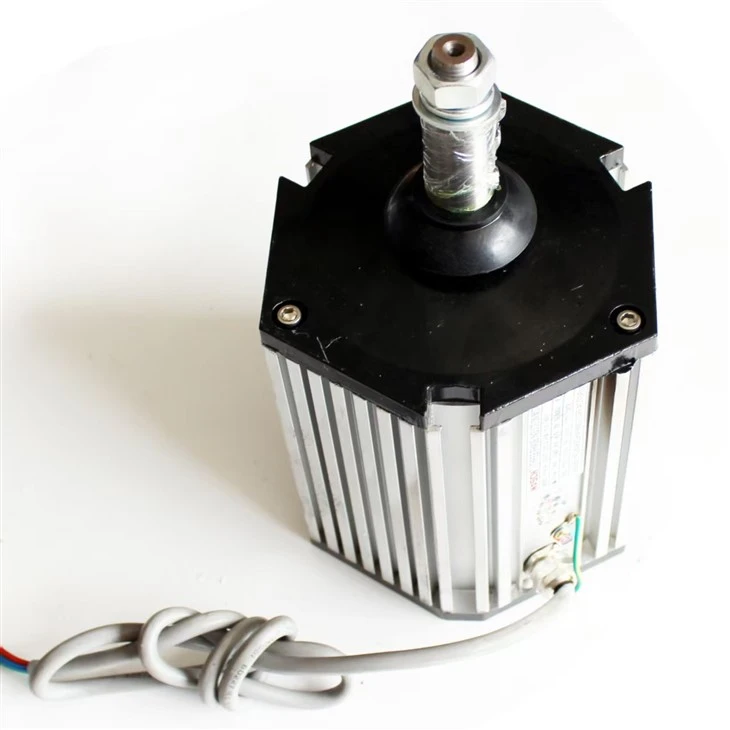

Environmental Protection Air Conditioners Motor

Conditions of use of motors

This motor is suitable for use in areas with an elevation of no more than 1000 meters. Should your project require motors for plateaus exceeding 1000m, we offer bespoke custom solutions. It runs reliably when the surrounding temperature ranges from -15°C to 40°C. Furthermore, the motor conforms to these technical requirements:

1.Built with S1 continuous working duty

2.Power supply voltage normally fluctuates within ±5%, while ±10% fluctuation is allowed for brief periods

3.The fluctuation range of mains frequency is restricted to ±2%

4.Constructed with F-grade insulating materials

5.Two enclosure protection levels, IP54 and IP55, can be selected

6.Fitted with an IC411 natural surface cooling structure

Key Advantages

1.Higher Efficiency

2.Smoother Operation

3.Robust Power

What is Your After-Sales Service Policy?
We offer a standard 1-year warranty from the date of purchase.

Do You Offer Free Samples?
Samples are available upon request; however, they are chargeable.

parameter

Voltage: 380V
Power: 1.1KW
Speed: 1400r/min
Rated Current: 2.8A
Frequency: 50Hz
Protection Grade: IP55
Insulation Grade: F
