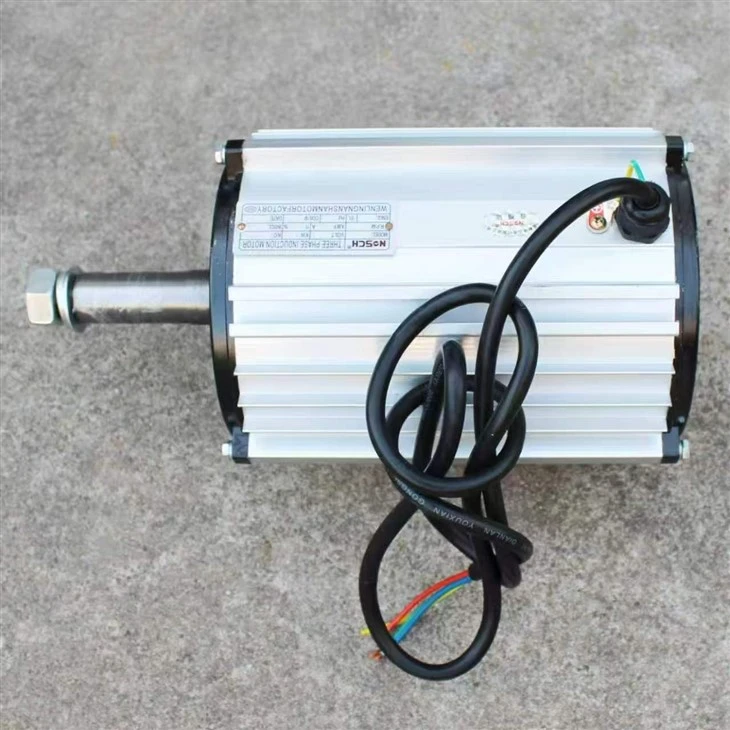

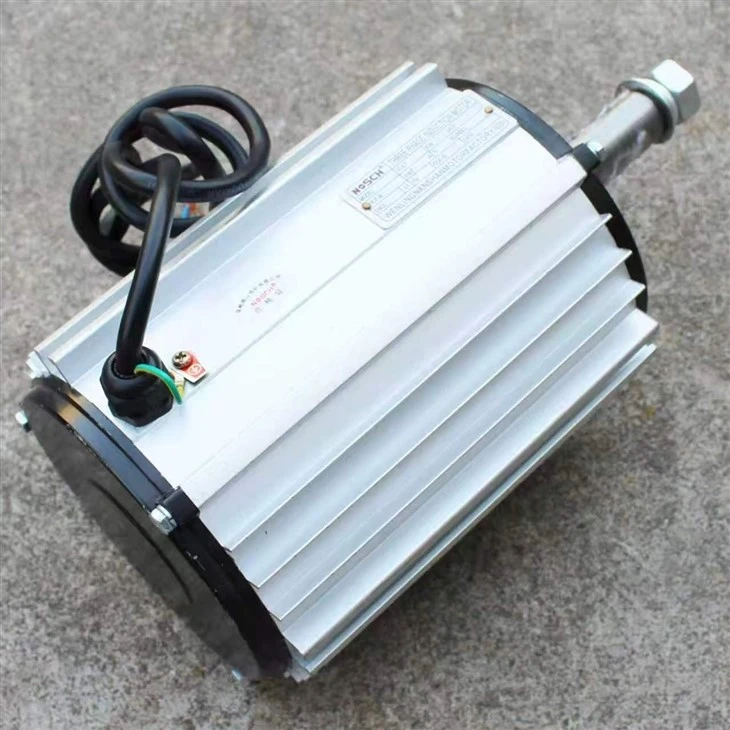

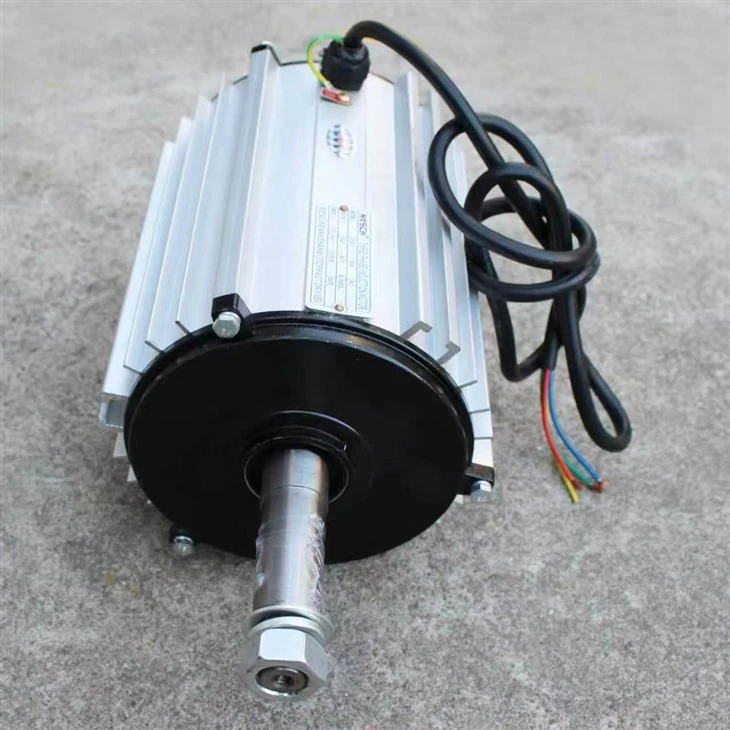

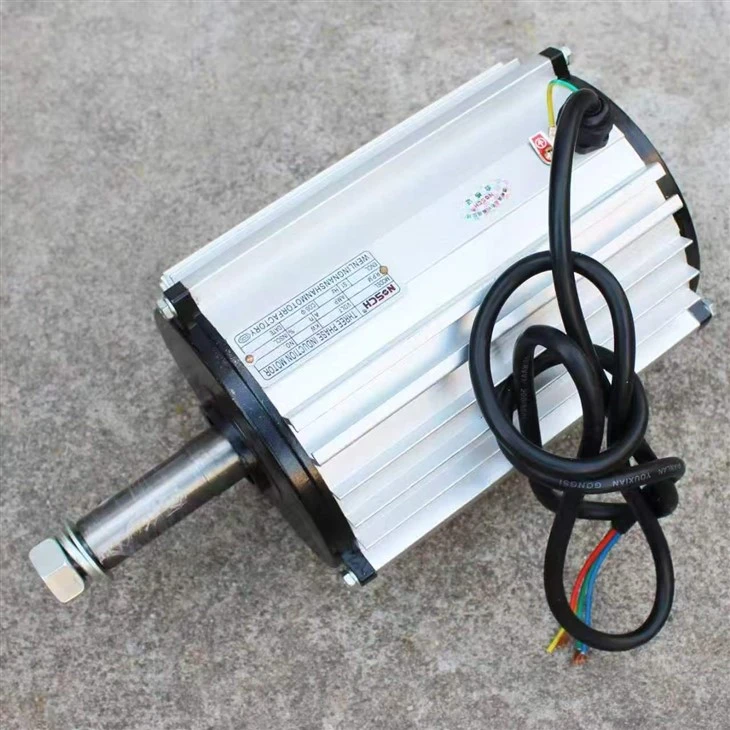

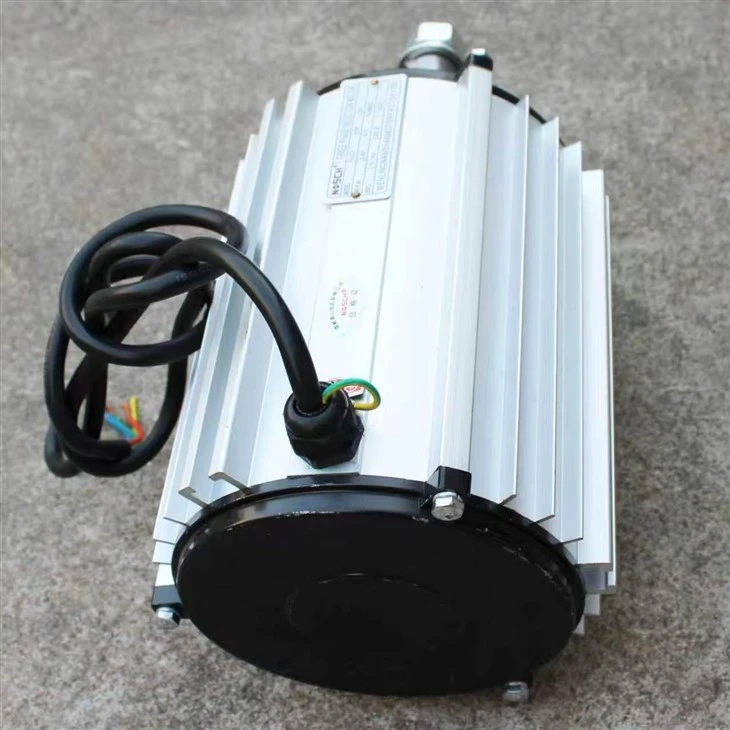

YF-100 3kw Three Phase Motor

Conditions of use of motors

Installation of this motor is limited to areas with an altitude below 1000 meters. We are capable of developing specially modified motors to satisfy plateau projects operating at elevations exceeding 1000 meters. This motor ensures stable operation within an ambient temperature scope of -15°C to 40°C. Beyond the environmental constraints mentioned above, the motor complies with the following technical standards:

1.Designed with S1 continuous operation duty

2.The standard allowable fluctuation range of supply voltage is ±5%, while transient voltage deviation of ±10% is allowed

3.The permissible fluctuation of grid frequency is controlled within ±2%

4.Equipped with Class F insulating parts during production

5.IP54 and IP55 casing protection ratings are available as optional choices

6.Adopts IC411 self-surface natural cooling construction

Key Advantages

1.Higher Efficiency

2.Smoother Operation

3.Robust Power

What is Your After-Sales Service Policy?
We offer a standard 1-year warranty from the date of purchase.

Do You Offer Free Samples?
Samples are available upon request; however, they are chargeable.

parameter

Voltage: 380V
Power: 3.0KW
Speed: 1420r/min
Rated current: 6.8A
Frequency: 50Hz
Protection level: IP55
Insulation class: F
Efficiency: 83%
Power factor COSφ: 0.82
Length from end face to shaft step: 20cm
Diameter and length of the shaft: Φ28x55mm
Diameter and length of the thread (reversed thread): M20x25
Distance between two holes: slot
